1/3
Unique Combi
Suctioning - jetting - combined operation with water recycling
2/3
Volume
Enormous tank volume on a short wheel base
3/3
Height
Low height for more capabilities - 3,5 m total height
Further information

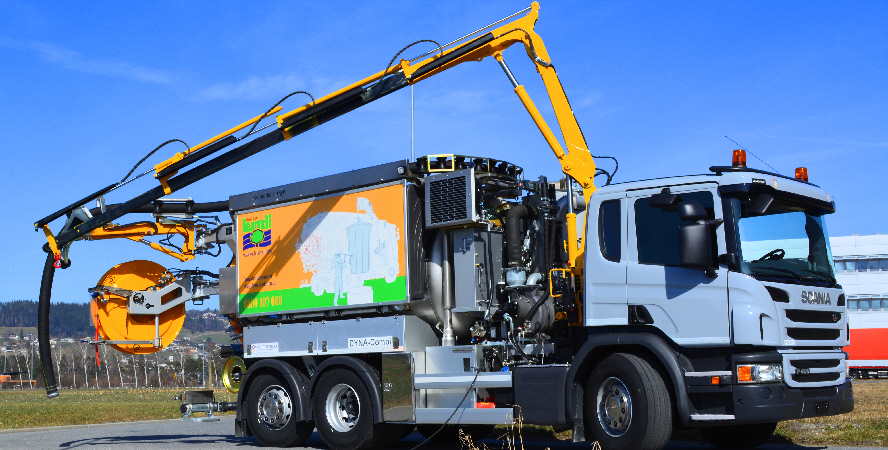

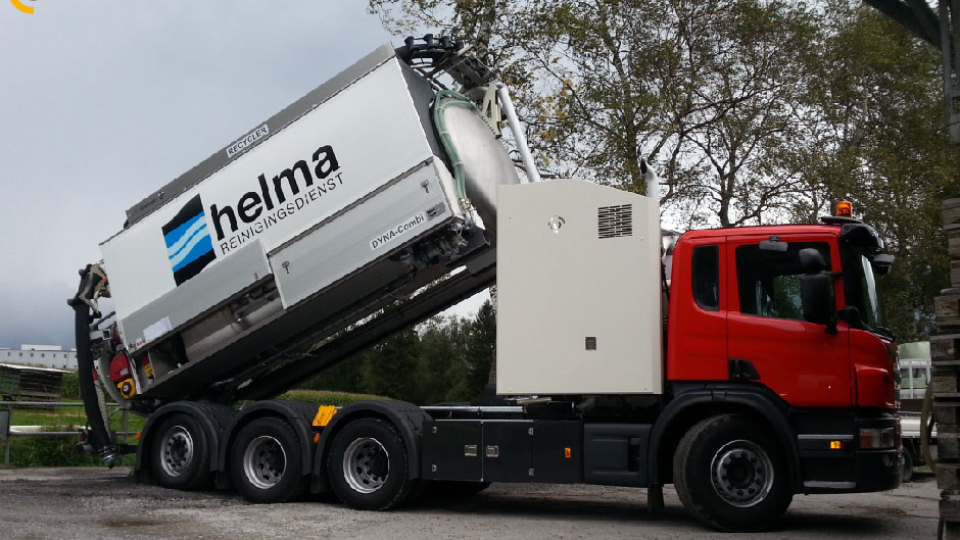

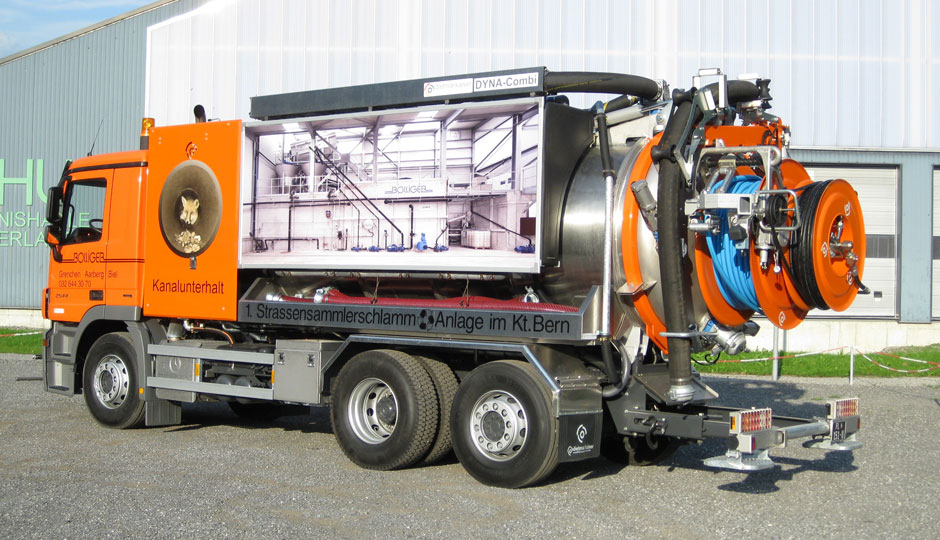

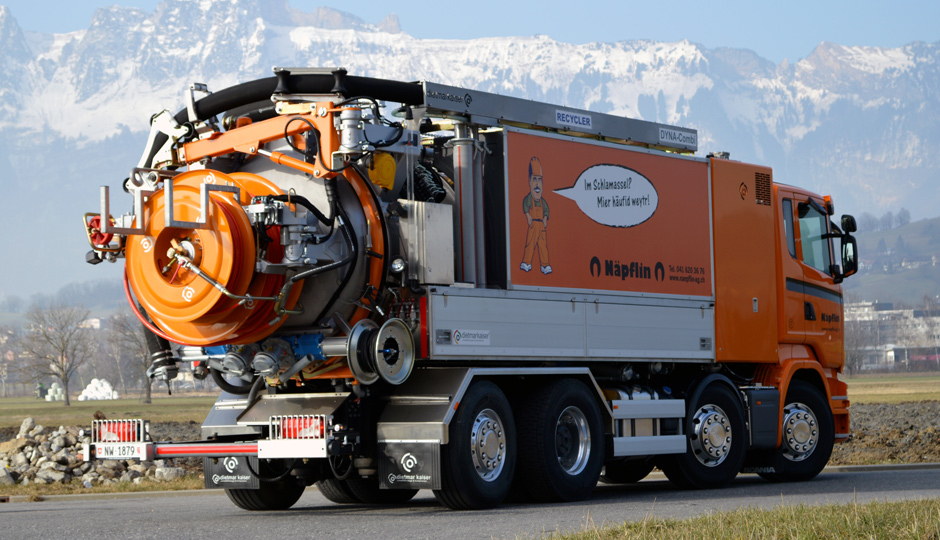

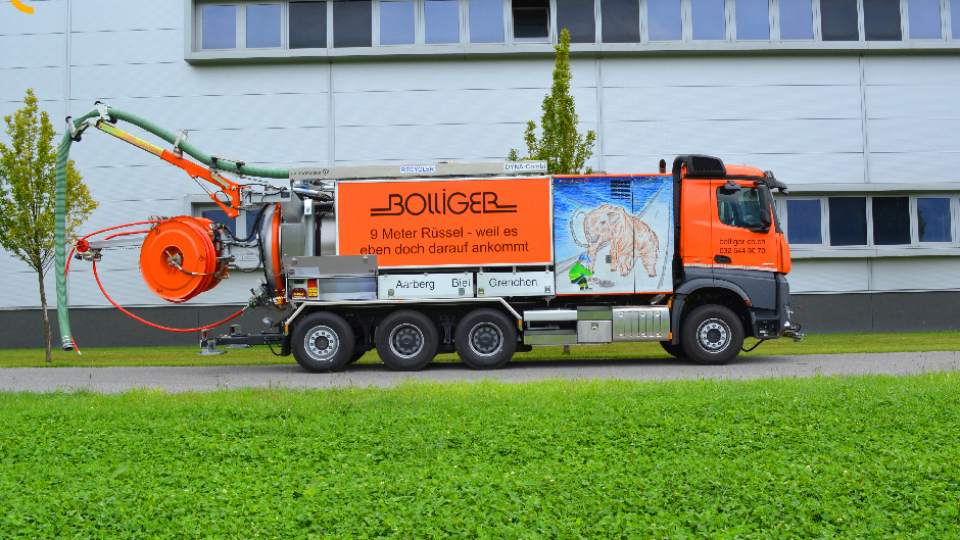

Unique Combi vehicle
The sophisticated configuration of the DYNA Combi is unique. Patented components such as the Power Pack and intelligent assistance systems make our vehicle service- and mission friendly.
All advantages:
- Suctioning – jetting – combined operation with water recycling
- Avoid excess axle loads with our load sharing Power Pack and Saddle Tank system
- Enormous tank volumes on a short wheel base
- Patented LWT: Service water tank for the liquid ring pump. No contamination of fresh water during suction operation!
- Increased cleaning capacity with the DYNA Water Recycling System allows better productivity.
- Immdiate operation with suction hose due to suction boom storage in back
- Approximately 8 m hydraulically extendable suciton hose without the need of suction hose/tube extensions
- Outstanding vehicular access due to 3,5 m low body design
- Extremely quiet operation reduces noise level for the benefit of the operator and the environment
- Approved for use in danger areas with ADR-version
- SIR = safe industrial cleaning
- High-pressure pumps from 100 l/min up to 500 l/min – max. 300 bar
- Vacuum Pumps from 950 m³/h up to 3100 m³/h – 90 % vacuum
- Hydrostatic drive
- Dead weight: 3-axle 16,4 t; 4-axle 18,0 t
Our DYNA Combi in action
The video shows bothe the fields of application and the diversity of the features.
Convince yourself of the exeptional performance of our DYNA Combi.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von Vimeo.
Mehr erfahren
| Eigenschaft | Wert |
|---|---|
| High pressure pumps: | 100 to 500 l/m - max. 300 bar |
| Vacuum pumps: | 950 to 3'100 m³/h - 90% Vacuum |
| Height: | 3,5 m |
| Dead weight 3-axle: | 16,4 t |
| Dead weight 4 axles: | 18,0 t |
| Brochure | 18 MB | Download |
